The choice of melting technique will depend on many factors but particularly the required capacity, the glass formulation, fuel prices, existing infrastructure and environmental performance. For example, as a general guide (to which there are inevitably exceptions):
• For large capacity installations (> 500 t/d) cross-fired regenerative furnaces are almost always employed.
• For medium capacity installations (100 to 500 t/d), regenerative end port furnaces are favoured, though cross-fired regenerative, recuperative unit melters, and in some cases oxyfuel or electric melters may also be used according to circumstances.
• For small capacity installations (25 to 100 t/d) recuperative unit melters, regenerative end port furnaces, electric melters and oxy-fuel melters are generally employed.
2.2.1 Regenerative Furnaces
The term regenerative refers to the form of heat recovery system. Burners firing fossil fuels are usually positioned in or below combustion air/waste gas ports. The heat in the waste gases is used to preheat air prior to combustion. This is achieved by passing the waste gases through a chamber containing refractory material, which absorbs the heat. The furnace fires on only one of two sets of burners at any one time. After a predetermined period, usually twenty minutes, the firing cycle of the furnace is reversed and the combustion air is passed through the chamber previously heated by the waste gases. A regenerative furnace has two regenerator chambers, while one chamber is being heated by waste gas from the combustion process, the other is preheating incoming combustion air. Most glass container plants have either end-fired or cross-fired
regenerative furnaces, and all float glass furnaces are of cross-fired regenerative design. Preheat temperatures up to 1400 °C may be attained leading to very high thermal efficiencies.

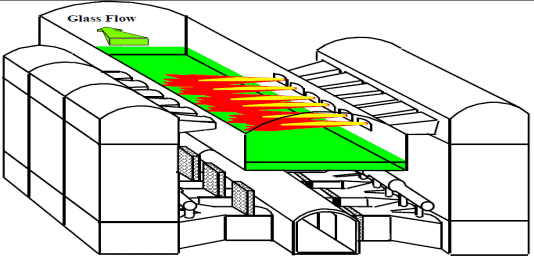

Figure 9.1: A cross-fired regenerative furnace
In the cross-fired regenerative furnace, combustion ports and burners are positioned along the sides of the furnace, regenerator chambers are located either side of the furnace and are connected to the furnace via the port necks. The flame passes above the molten material and directly into the opposite ports. The number of ports (up to 8) used is a function of the size and capacity of the furnace and its particular design. Some larger furnaces may have the regenerator chambers divided for each burner port.
This type of design using effectively a multiplicity of burners is particularly suited to larger installations, facilitating the differentiation of the temperature along the furnace length necessary to stimulate the required convection currents in the glass melt.

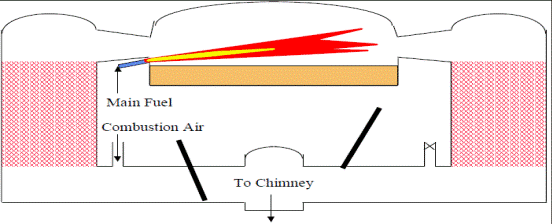

Figure 9.2: Cross section of a regenerative furnace
In the end-fired regenerative furnace the principles of operation are the same, however, the two regenerative chambers are situated at one end of the furnace each with a single port. The flame path forms a U shape returning to the adjacent regenerator chamber through the second port.
This arrangement enables a somewhat more cost effective regenerator system than the cross-fired design but has less flexibility for adjusting the furnace temperature profile and is thus less favoured for larger furnaces.

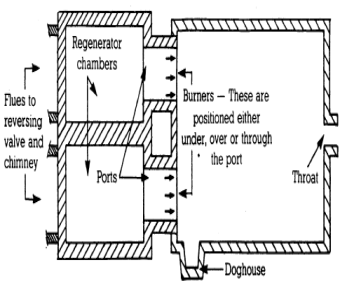

Figure 9.3: Single pass end-fired regenerative furnace Figure 9.4: Plan view of end-fired regenerative furnace
2.2.2 Recuperative Furnaces
The recuperator is another common form of heat recovery system usually used for smaller furnaces. In this type of arrangement the incoming cold air is pre-heated indirectly by a continuous flow of waste gas through a metal (or, exceptionally, ceramic) heat exchanger. Air preheat temperatures are limited to around 800°C for metallic recuperators, and the heat recovered by this system is thus lower than for the regenerative furnace. The lower direct energy efficiency may be compensated by additional heat recovery systems on the waste gases, either to preheat raw materials or for the production of steam. However, one consequence is that the specific melting capacity of recuperative furnaces is limited to 2 tonnes/m2/day compared to typically 3.2 tonnes/m2/day for a regenerative furnace in the Container Glass Sector. This lack of melting capacity can be partially compensated by the use of electric boosting.
Although originally unit melters (or direct fired) furnaces were not necessarily equipped with recuperators this is now exclusively the case and the term unit melter has become synonymous with the recuperative furnace. The burners are located along each side of the furnace, transverse to the flow of glass, and fire continuously from both sides. This allows better control and more stable temperatures than in end-fired furnaces. By controlling the burners to create a
temperature gradient along the furnace, the convective currents generated draw the hot combustion gases over the batch surface and up through the exhaust port at the upstream end of the furnace.
This type of furnace is primarily used where high flexibility of operation is required with minimum initial capital outlay, particularly where the scale of operation is too small to make the use of regenerators economically viable. It is more appropriate to small capacity installations although higher capacity furnaces (up to 400 tonnes per day) are not uncommon.
2.2.3 Oxy-fuel Melting
This technique involves the replacement of the combustion air with oxygen (>90 % purity). The elimination of the majority of the nitrogen from the combustion atmosphere reduces the volume of the waste gases, which are composed almost entirely of carbon dioxide and water vapor, by about two thirds. Therefore, energy savings are possible because it is not necessary to heat the atmospheric nitrogen to the temperature of the flames. The formation of thermal NOx is greatly reduced, because the only nitrogen present in the combustion atmosphere is the residual nitrogen in the oxygen, nitrogen in the fuel, nitrogen from nitrate breakdown, and that from any parasitic air.
In general oxy-fuel furnaces have the same basic design as unit melters, with multiple lateral burners and a single waste gas exhaust port. However, furnaces designed for oxygen combustion do not utilize heat recovery systems to pre-heat the oxygen supply to the burners.
The technique is still considered by some sectors of the glass industry, as a developing technology with potentially high financial risk. However, considerable development work is being undertaken and the technique is becoming more widely accepted as the number of plants is increasing.
2.2.4 Electric Melting
An electric furnace consists of a refractory lined box supported by a steel frame, with electrodes inserted either from the side, the top or more usually the bottom of the furnace. The energy for melting is provided by resistive heating as the current passes through the molten glass. It is, however, necessary to use fossil fuels when the furnace is started up at the beginning of each campaign. The furnace is operated continuously and has a lifetime of between 2 and 7 years.
The top of the molten glass is covered by a layer of batch material, which gradually melts from the bottom upwards, hence the term cold top melter. Fresh batch material is added to the top of the furnace, usually by a conveyor system that moves across the whole surface. Most electric furnaces are fitted with bag filter systems and the collected material is recycled to the melter.
The technique is commonly applied in small furnaces particularly for special glass. The main reason for this is the thermal efficiency of fossil fuel fired furnaces decreases with furnace size and heat losses per ton of melt from small furnaces can be quite high. Heat losses from electric furnaces are much lower in comparison, and for smaller furnaces the difference in melting costs between electrical and fossil fuel heating is therefore less than for larger furnaces.
Other advantages of electric melting for small furnaces include lower rebuild costs, comparative ease of operation and better environmental performance.
2.2.5 Combined Fossil Fuel and Electric Melting
There are two principal approaches to the use of this technique: predominantly fossil fuel firing with electric boost; or predominantly electrical heating with a fossil fuel support. Clearly the proportion of each type of heat input can be varied with each technique.
Electric boosting is a method of adding extra heat to a glass furnace by passing an electric current through electrodes in the bottom of the tank. The technique is commonly used within fossil fuel fired furnaces in the Glass Industry. Traditionally, it is used to increase the throughput of a fossil fuel fired furnace to meet periodic fluctuations in demand, without incurring the fixed costs of operating a larger furnace. The technique can be installed while a furnace is running, and it is often used to support the pull rate of a furnace as it nears the end of its operating life or to increase the capacity of an existing furnace.
Electric boosting can also be used to improve the environmental performance of the furnace by substituting electrical heating for combustion for a given glass pull rate. Usually 5 % to 20 % of total energy input would be provided by electric boost.
However, a high level of electric boost is not used as a long-term option for base level production due to the associated high operating costs. Variable levels of electric boost are frequently used in coloured glass due to the poor radiant heat transfer in green and amber glass.
2.2.6 Discontinuous Batch Melting
Where smaller amounts of glass are required, particularly if the glass formulation changes regularly, it can be uneconomical to operate a continuous furnace. In these instances pot furnaces or day tanks are used to melt specific batches of raw material.
A pot furnace is usually made of refractory brick for the inner walls, silica brick for the vaulted crown and insulating brick for the outer walls. Basically a pot furnace consists of a lower section to preheat the combustion air (either a regenerative or a recuperative system), and an upper section which holds the pots and serves as the melting chamber. The upper section holds six to twelve refractory clay pots, in which different types of glass can be melted.
There are two types of pots open pots and closed pots. Open pots have no tops and the glass is open to the atmosphere of the furnace. Closed pots are enclosed and the only opening is through the gathering hole. With open pots the temperature is controlled by adjusting furnace firing, with closed pots firing is at a constant rate, and the temperature is controlled by opening or closing the gathering hole. The capacity of each pot is usually in the range 100 kg to 500 kg,
with a lifetime of 2 to 3 months under continuous operation.
The furnace is heated for 24 hours each day but the temperature varies (glass temperature only for closed pots) according to the phase of the production cycle. Generally, the batch is loaded into the pots and melted in the afternoon, and the temperature is increased overnight to refine the melt so the glass can be processed the next morning. During melting the temperature climbs to between 1300°C and 1600°C, depending on the glass type, and during the removal and
processing of the glass the furnace temperature is in the range 900°C to 1200°C.
Day tanks are further developed from pot furnaces to have larger capacities, in the region of 10 tons per day. Structurally they more closely resemble the quadrangle of a conventional furnace, but are still refilled with batch each day. The melting is usually done at night and the glass goes into production the next day. They allow a change in glass type to be melted at short notice and are primarily used for colored glass, crystal glass and soft special glasses.
2.2.7 Special Melter Designs
The attention paid to limiting NOx emissions has led some furnace designers to propose unit melter type furnaces that integrate various features intended to permit lower flame temperatures. The best known of this type of furnace is the Sorg LoNOx melter.
The Sorg LoNOx melter uses a combination of shallow bath refining and raw material preheating to achieve reduced NOx levels, potentially without the penalty of reduced thermal performance. The shallow bath refiner forces the important critical current path close to the surface of the glass bath, thereby reducing the temperature differential between it and the furnace superstructure.
The furnace can be operated at lower temperatures than a comparable conventional furnace.
Another new furnace design is the Sorg Flex Melter, which is principally marketed as an alternative to pot furnaces and day tanks. It uses a combination of electricity and natural gas resulting in a compact furnace with low operating temperatures and low energy consumption.
The furnace is divided into melting and refining zones, which are connected by a throat. The refining area consists of a shallow bank followed by a deeper area. The melting end is electrically heated and the refining zone is gas heated, but electrodes may be added at the entrance. The waste gases from the refining zone pass through the melting area and over the batch. A number of low arches prevent radiation from the hotter part of the furnace reaching the colder areas, so that a large part of the energy in the waste gases is transferred to the batch.
The separation of the melting and refining zones is the basis of the furnace’s flexibility. During standstill periods temperatures are lowered and volatilisation from refining is reduced. No drain is needed and due to the low glass volume, normal operating temperature is re-established quickly. The low volume also helps to make faster composition changes.
