Solders applied with a soldering iron are used for fastening many types of sheet metals and for making seams watertight.
To achieve a good standard of soldering, you must first know the kind of material being soldered, the kind of solder and flux most suited and the proper soldering bit for the job.
The term solder is a broad one, but it generally refers to the joining or uniting of two or more pieces of metal by means of an alloy having a lower melting point than that of the metal being soldered. Soldering may be divided into two general classes, soft and hard soldering.
Hard solders are those include such processes soft soldering that is having a melting point over 750°F and include such processes as silver soldering and brazing. It is soft soldering that is generally used by the sheet metal worker.

Properties of Soft Solder

Soft solder comprises of tin and lead and its melting point depends largely upon the proportions of these two elements. The common soft solders are divided broadly into three grades of the following approximate compositions -
TIN     LEAD
(1) Best tinman’s solder         2          1
(2) Medium quality                1          1
(3) Plumbers solder                1          2

Soft solders are classified by the proportions of each element by weight. Therefore 50-50 means that the solder consists of 50% tin and 50% lead by weight. It is important to note that the % of tin is always given first. Thus 60-40 contains 60% tin and 40% lead while 40 - 60 contains 40% tin and 60% lead.

Soldering and Fluxes

In the sheet metal shop, the preferred solder proportions are 50-50 since this gives a low melting point. Other trades have found that different proportions are better suited to their needs. Generally by increasing the tin % it lowers the melting point, this is only true up to 87% tin content, after this point as the tin % increases, the solder’s melting point increases.
It is well to remember that the strength or bonding quality depends on more than the melting point of the solder. For example, a poorly tinned soldering iron may be overheated to 700°F and still not distribute the solder in a satisfactory way.

Bar and Wire Solder

In the sheet metal trade, solder is generally used in bar or wire form. In wire form it can either be of hollow or solid cross section. In the hollow form, the core can contain an acid and rosin flux. This is called acid core and rosin core solder.

Soldering Fluxes

Flux is required to remove the oxide film that is always present on metal. If no flux were used, this oxide film would make adherence of the solder to the metal difficult if not impossible. Rather than bonding the metal, the solder would lie loosely over the oxide film.
There are two general classes of soldering flux - corrosive, and non-corrosive. Acids are corrosive and therefore should be washed off immediately after the soldering has been completed. Rosin is a non-corrosive flux. It may be in the form of a lump, powder, paste or liquid.

Rosin

Rosin is a by-product of oil and of turpentine and is a common, non-corrosive type of flux for soldering metals such as bright tin plate, terne plate and copper. Rosin may be applied as a powder melted on the metal by a warm soldering iron, or made into a paste by adding enough benzine to make it a semi-solid.

Requirements of a Good Soldering Flux

1. It must remain liquid at soldering temperatures.
2. In its liquid state it must act as a cover and keep out the atmosphere.
3. It should dissolve any oxide film present on the joint.
4. It should be removed from the joint by the hot liquefied solder.

Hydrochloric Acid

Muriatic acid is the commercial grade of hydrochloric acid used in soldering. It is used for making zinc chloride for a flux on galvanised steel and for cleaning off dirty parts of the metal before they are soldered. In the sheet metal shop, muriatic acid is usually called "raw spirits". Though the term hydrochloric acid and muriatic acid are often used inter-changeably, there is one difference of which you should be aware. Muriatic acid is the commercial term and comes in one strength only - a medium strength acid.
Hydrochloric acid is the chemical name and can be in any strength from a very dilute to a very concentrated and dangerous acid.
Raw hydrochloric acid is colourless and has a sharp odour. However, the surest identification of raw acid is to put a small amount on a piece of galvanised sheet. If the metal bubbles and turns black it is raw acid.

Zinc Chloride

Zinc chloride is often called "killed spirits". It is unequal as a flux when soldering galvanised metals, zinc, brass, copper, lead. It is also used to solder tin that has become tarnished by being exposed to the weather. "Killed spirits" is colourless and odourless. It is as corrosive and dangerous as raw acid and it should be treated with the same respect.
One method of distinguishing "killed spirits" from raw acid is to put it on a piece of galvanised sheet. If it reacts as before it is said to be raw acid, if no reaction takes place it is "killed spirits".

Safety

With both "killed spirits" and raw acid it is extremely important to remember that these acids are highly dangerous and should be treated with the utmost caution. They will eat holes in clothing and cause painful skin burns.
The greatest danger is if it comes into contact with the eyes.
Should this happen, wash the eyes out with cold water and send for a doctor.

Soldering Irons

Soldering irons are made of solid copper pieces and vary in shape and weight. The body of the soldering iron is called the head.

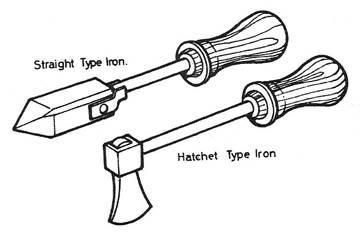

Figure 3 - Soldering Irons

The pointed end is referred to as the point or tip and is forged into various shapes for different kinds of work. Common shapes would include the square pointed or straight type, and the hatchet type. The weights of soldering irons vary depending on the job being done, but a standard weight would be approximately ¾ lb to 1½ lbs.
The handles are made of wood or fibre. A good handle would have a metal ferrule to keep it from splitting and a cheap one would have a ferrule wire to prevent it from splitting.

Figure 4 - Soldering Iron Handles

A special handle flange for heavy irons would have a flange to keep the heat away from the handle.

Heating Equipment

Sheet metal workers generally use a bench gas furnace or a butane furnace.

Gas Furnace

The bench type gas furnace is specially designed to heat soldering irons.

Figure 5 - Gas Furnace

The furnace is equipped with shut off valves and a pilot light. The base and the cover of the furnace are lined with asbestos. A steel shelf is located in the rear to protect the tinned points of the iron. For safety every furnace should be in a well ventilated area. It is preferable that some type of extraction system be fitted to extract gases etc.
When lighting observe the following:

1. Check the shut-off valve to see if it is closed.
2. Remove any dirt from inside the furnace.
3. Light a small piece of paper and place it in the mouth of the furnace and switch on at the same time. Control the flame, the small pilot light will light and thus will re-light the furnace as you require it. Always stand to one side when lighting the furnace. This will avoid burns in case the fire does flash out when it catches.

When not in use, the furnace burner valve should be turned off, leaving only the pilot light burning. At the close of the day the main line valve and the branch line valve should be turned off.

Butane Furnace

The butane furnace is often used in the shop. It is portable and safe to use, providing you follow the manufacturer's instructions.

Figure 6 - Butane Furnace

Preparing for Soldering

Filing and Tinning the Soldering Iron

Tinning a soldering iron means covering the point with solder. A well tinned iron is absolutely necessary to do a good job.
There are several important reasons for tinning a soldering iron.

1. Tinning keeps scale and corrosion from forming on the iron point. This scale and corrosion does not permit the heat to transfer from the iron to the solder.


2. Tinning allows the solder to flow properly from the point to the metal. Also, since tinning keeps the point clean it also keeps dirt and scale out of both the solder and the seam.



Before tinning the iron you will heat it to a cherry red then file it to remove any pits or scale, then reheat it and then apply a small amount of flux and solder to the point, it will flow smoothly if the point is clean and hot enough.
If it does not adhere to it you will have to reheat the iron and clean and proceed again.
The soldering iron should not be overheated because the tinned surface will be ruined no matter how well it’s tinned. When not in use the heat should be lowered and the iron withdrawn from the heat.

Applying the Flux

It is very important to apply the flux correctly. Improper use has destroyed many good jobs. Liquid fluxes are applied by brush, taking care not to drop any except where it's to be soldered.
Rosin may be either sprinkled on, or be melted on the job by a hot iron.

Positioning of Soldering

The positioning of the soldering iron is important because the iron does two things as it is applied to the parent metal.

1. It heats the metal to the melting point of the solder.



1. It melts the solder and keeps it in a liquid state while soldering.

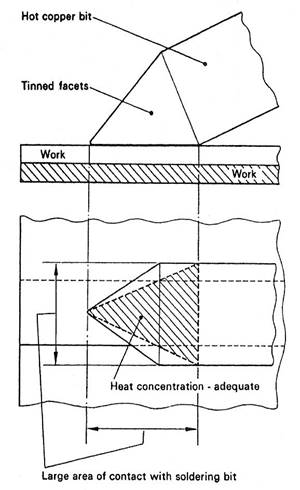

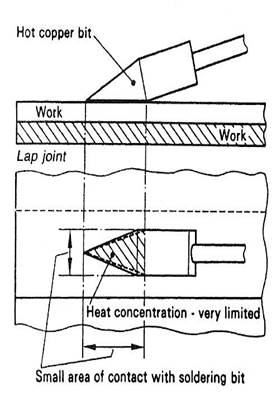

   First point to remember is that it is important that as much of the point of the iron rests on the metal to allow maximum heat transfer from the tip to the metal.
   You should remember that the greatest heat is in the body and the base of the point and not the tip.
   However, special work requires the use of the tip.
   Since melted solder flows to the hottest point on the metal, the soldering iron should be held as shown in the diagram so that the solder will be pulled into the seam.

Galvanised Steel

When soldering galvanised steel the principal question which arises is, whether you should use raw acid or zinc chloride as the flux. If the metal is bright and clear, zinc chloride can be used to make a well-bonded joint. However, if the metal is dull and dirty, raw acid definitely should be used. There are also good commercial marketed fluxes for soldering galvanised steel.

Soldering Tin and Terne Plate

Steel, coated with tin or lead, can be soldered with a variety of fluxes. Whenever possible, rosin should be used because of its non-corrosive action upon metal. If the metal is dull, as would be true of used or old tin plate, zinc chloride can be used satisfactorily. Always wipe or wash the flux from the metal immediately after completing the soldering.

Soldering Copper or Brass

If the surface of the copper or brass is free from oxide it can be soldered easily using zinc chloride as the flux. If the copper or brass is dull, it can be cleaned by using raw acid directly on the metal with a brush. The raw acid should be washed off with a damp rag before applying the zinc chloride for soldering. All flux should be washed off after soldering.

Soldering Stainless Steel

It can be soldered easily with prepared soldering fluxes designed especially for the purpose. If these special fluxes are not available, prepare the surface in the same way as that of tarnished copper. Scratch the surface with sandpaper and with a brush apply raw acid to the soldering parts. After the acid has been left on the metal for the required time (which varies with the type of stainless steel and the acid strength) it should be wiped clean with a damp rag. The metal is then soldered as for copper, using regular half and half solder with zinc chloride as the flux. The flux should be cleaned off after soldering.

Lead Soldering

Rosin flux is considered best for soldering lead and the surface must be scraped with a tinners scraper immediately after cleaning as the metal quickly oxidises. The soldering iron must be well tinned and cooler than usual. There should be some solder between the hot iron and the lead at all times to keep the lead from melting.

Soldering by Flame

A greater rate of heat flow can be accomplished in some soft-soldering operations by the use of a suitable flame. A mouth 'blow-pipe' may be used where soldered joints are required to be made with a minimum of heating of the article as a whole. By this means a bunsen-type flame of exactly the right size can be directed where the heat is required, solder being applied when the locally heated part has reached soldering temperature. Special 'blow-pipe solder' is available for the purpose, or solder can be applied from fine flux-cored wire or in the form of a paste in which the flux and solder are incorporated.



Preheating parts prior to soldering will reduce heat loss by conduction.
(b) Adequate heat concentration is provided by the use of a large enough soldering iron.

Large gas flames or 'blow-pipes' are extensively used where a more rapid and wider spread of heat is required, for example:

1. Filling in dents or sunken welded joints on motor vehicle bodies.
2. Sweating pre-tinned joints together. For example, pipe joints or long seams where the heat tends to be rapidly conducted away from the joint.
3. The tinning of castings and some metal bearings.

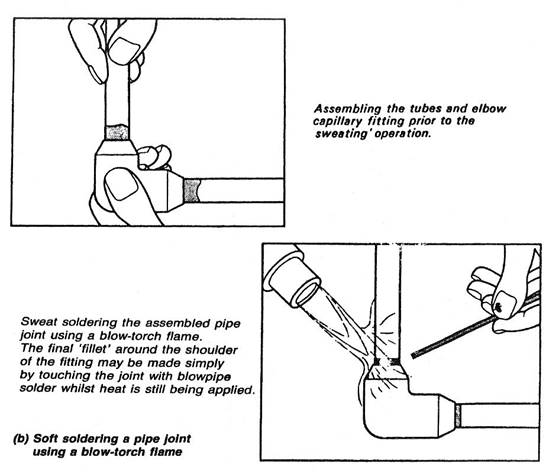

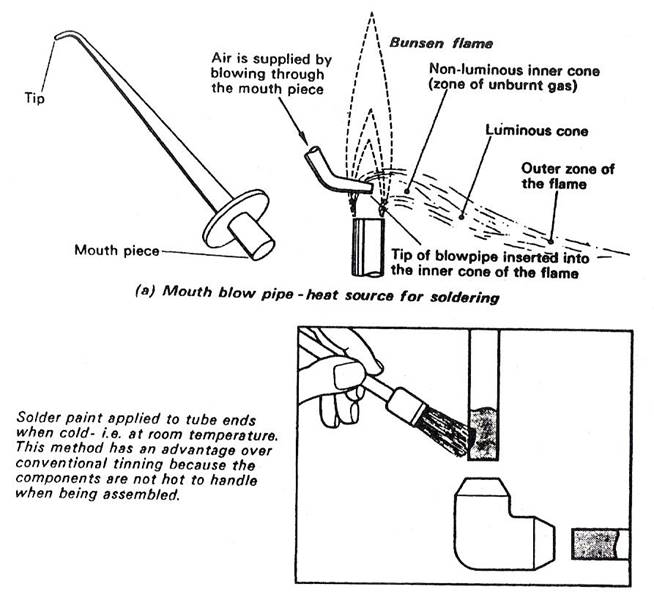

   Figure 7 illustrates flame soldering.

Figure 7 - Flame Soldering

Types of Soft-Solder Joints

Soft soldering, as a joining method, relies almost entirely on ADHESION for its strength.
Soft-soldered joints are strongest at room temperature, their mechanical strength decreasing rapidly as the temperature increases.
The strength of a soft-soldered joint is determined by three basic factors:

1. The strength of the solder itself - this is governed by its composition (i.e. ratio of TIN/LEAD); surplus solder does not add any strength to the joint.
2. The strength of the bond between the bulk of the solder and the surfaces which it 'tins' (i.e. the interfaces);
3. The design of the joint. Where strong joints are required, the joint edges may be interlocked prior to soldering.

Factors influencing joint design for soft soldering are illustrated in Figure 8 and Figure 9.
As illustrated in Figure 8(a), a soldered joint is strongest 'in shear' (42-49 MN/m²) and weakest 'in tension' (0.28-0.35 MN/m²).
A straight butt joint under tension places the bulk solder between the interfaces under TENSILE STRESS (see Figure 8(b)). This means that the stress-carrying capacity of this type of joint is limited to the tensile strength and cross-sectional area of the solder itself. Soft solder has a very low tensile strength.
Joints designed for 'shear loading' can be strengthened by increasing the lap area (surface contact area) as required, and by reducing the thickness of the solder deposit (Figure 8(e)).
Soldered lap joints made with 'close clearances' derive the greater proportion of their overall strength from the 'bonded zones' (interfaces) where the solder is in intimate contact with the surfaces of the parent metal. Any tendency to yield under load is opposed by the force required to displace the solder bond.

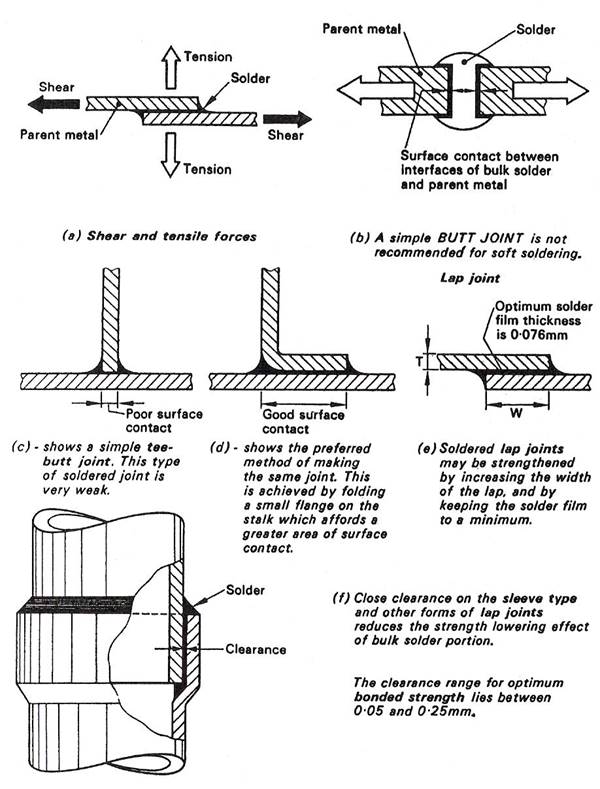

Figure 8 - Design of Soldered Joints

Figure 10, Figure 11 and Figure 12 illustrate three common soft-soldering operations: tacking, sweating and floating.
Tacking (Figure 10). When making long soldered seams it is considered good practice to “tack” the surfaces together using the following sequence.

Figure 9 - Various Types of Soft-Soldered Joints

First at the middle, then at each end, and at regular intervals in between.
Reason: This tacking sequence maintains a uniform spread of temperature and so reduces any tendency by the parent metal being tacked to warp or buckle due to uneven expansion and contraction.
Figure 9 shows various types of joint design used in sheet-metal work.
The process of tacking (Figure 10(b)) is simply carried out by methodically placing small ‘blobs’ of solder at regular intervals along the seam in order to hold it in position prior to the main soldering operation.
The tip of the hot copper bit is used and the local heating effect causes the small amount of solder placed on it to penetrate the joint at the point of contact.

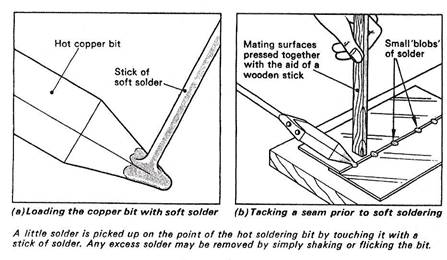

Figure 10 - Soft-Soldering Processes – Tacking

During tacking, the mating surfaces of the seam are pressed tightly together by means of a wooden stick or the 'tang' of a file.
The second common soft-soldering process is illustrated in Figure 11(a), (b) and (c).

1. A thin coat of soldering flux is applied to the mating surfaces which have been previously cleaned.
   It is advisable to arrange the seam to be soldered on some suitable support such as a block of wood or a piece of solid asbestos sheet.
   Avoid placing the seam to be soldered over a metal support.
   Reason: A cold mass of metal, when used as a support, will absorb too much of the heat by CONDUCTION and make soldering difficult.
2. A uniform coating of solder is applied to each of the surfaces to be joined. This operation is called TINNING.
   Solder flows more readily between surfaces that have been pre-tinned.
   The advantage of tinning the mating surfaces is that the seam or joint can be made very much quicker and at a lower temperature. One other advantage of a pre-tinned surface is that a corrosive flux is not required.
3. The joint edges are placed together with their tinned surfaces in contact and are held by pressing downwards with a hold-down stick or the tang of an old file. A heated soldering iron is placed on one end of the seam ensuring that maximum surface contact is made with a flat face at the point of the copper bit. As the solder between the two surfaces begins to melt and flow out towards the edges, the bit is slowly drawn along the seam followed by the hold-down stick pressing down on the metal.

Figure 11 - Soft-Soldering Processes – Sweating

Figure 12 - Soft Soldering Processes – Floating

THE SUCCESS OF SWEATING DEPENDS UPON HAVING A CONSTANT SUPPLY OF HEAT.

The soldering bit must be large enough to transmit sufficient heat through the joint.

FLOATING, the third common process and illustrated in Figure 12, is a useful soft-soldering operation which is employed when sealing SELF-SECURED JOINTS in order to make vessels or containers liquid-tight.

One method, illustrated in (a), is to use a specially shaped soldering bit called a BOTTOMING IRON.

The joint is fluxed both inside and outside, and the container is supported on a wooden base and tilted at an angle of approximately 45°.

A small quantity of soft solder, conveniently prepared in the form 'buttons' or 'blobs', are dropped in the container and melted with the heated and tinned bottoming iron.

This molten solder is then carefully flooded along the inside of the joint as the container is slowly rotated. The quantity of solder is uniformly controlled by steady manipulation of the soldering iron, adding blobs of solder if and when required.

If a bottoming iron is not available, an alternative method is to use a flame as the heat source. This method is shown in Figure 12(b).

An asbestos glove should be worn as a protection from the flame and the heat radiated from it. The flame is carefully applied to the outside of the joint, and the same procedure is adopted.

With either method the solder not only penetrates the interlocking surfaces but presents a smooth and nicely rounded corner on the inside of the joint.

A floating of solder not only prevents liquid foodstuffs from penetrating the joint and becoming rancid, but also provides a radiused corner which can easily be kept clean by simply wiping with a damp cloth.
