What is an Operating System (O.S.)?
It is the heart and soul of a computer. It is the basis on which all software applications rest. It takes care of little details, such as reading a data from a disk, interpreting the keystrokes and so on.
An amazing aspect of operating systems is how varied they are in accomplishing these tasks. Mainframe operating systems are designed primarily to optimize utilization of hardware. Personal computer (PC) operating systems support complex games, business applications, and everything in between. Operating systems for handheld computers are designed to provide an environment in which a user can easily interface with the computer to execute programs. Thus, some operating systems are designed to be convenient, others to be efficient, and others some combination of the two.
A computer system can be divided into four components: the hardware, the operating system, the application programs and the users. An operating system is similar to a government, it simply provides an environment within which other programs can do useful work.

Abstract View of the Components of a Computer System
An operating system provides the environment within which programs are executed.
An operating system is the 'brains' behind the computer to extend the functionality of the machine and to manage all the resources allocated to it. It is a collection of software that manages computer hardware resources and provides common services   for computer programs. The operating system is a vital component of the system software in a computer system. Application programs usually require an operating system to function.
The most commonly used operating systems are, Windows 95, Windows 98, Windows Me, Windows NT, Windows 2000, Windows XP, Windows Vista,    Windows 7, Apple Macintosh, Unix, etc.
The essential job of O.S. can be divided into three categories:
1. Control of Hardware:   Controls how the computer resources are used and allocation them such as CPU time, main memory, secondary storage, and input and output devices for use.
2. Manage Software:   Controls how programs are run, and manages software  resources of the system and how they are used.
3. Interact with users:   Helps the average users put their PCs to work.
The components of an operating system all exist in order to make the different parts of  a computer work together. All user software needs to go through the operating system in order to use any of the hardware, whether it be as simple as a mouse or keyboard or as complex as an Internet component.
functions operating system
O.S. Kernel (Basic Level)
A kernel connects the application software to the hardware of a computer. With the aid of the firmware and device drivers, the kernel provides the most basic level of control over all of the computer's hardware devices. It manages memory access for programs in the RAM, it determines which programs get access to which hardware resources, it sets up or resets the CPU's operating states for optimal operation at all times, and it organizes the data for long-term non-volatile storage with file systems on such media as disks, tapes, flash memory, etc.

Functions of Operating System

The major functions that are done by O.S are:

1) Process Scheduling :   it determines and maintains the order in which jobs are to be executed in the computer system.
2) Memory-Management :   allocation of main memory and other storage areas to the system programs as well as user programs and data.
3) CPU Management :   assignment of processor to different tasks being performed by the computer system.
4) I/O Management  :   co-ordination and assignment of the different output and input device while one or more programs are being executed.
5) File management  :   the storage of file of various storage devices to another. It also allows all files to be easily changed and modified through the use of text editors or some other files manipulation routines.
6) Interpretation of commands and instructions.



What does a device driver do?
A driver is a specially written program which understands the operation of the device it interfaces to, such as a printer, video card, sound card or CD ROM drive. It translates commands from the operating system or user into commands understood     by  the component computer part it interfaces with.
It also translates responses from the component computer part back to responses that can be understood by the operating system, application program, or user.

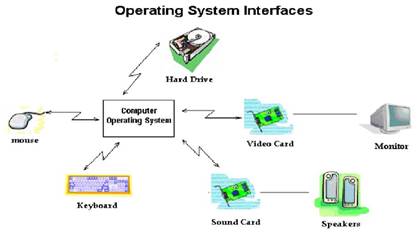

The below diagram gives a graphical depiction of the interfaces between the operating system and the computer component.

functions operating system



Types of Operating Systems

There are Many Operating Systems those have be Developed for Performing the Operations those are requested by the user. There are Many Operating Systems which have the Capability to Perform the Requests those are received from the System. The Operating system can perform a Single Operation and also Multiple Operations at a Time. So there are many types of Operating systems those are organized by using their Working Techniques.

1)  Serial Processing:
The Serial Processing Operating Systems are those which Performs all the instructions into a Sequence Manner or the Instructions those are given by the user will be executed by using the FIFO manner means First in First Out. All the instructions those are entered first in the system will be executed first and the instructions those are entered later will be executed later. For running the instructions the program counter is used which is used for executing all the instructions. In this the program counter will determines which instruction is going to execute and the which instruction will be execute after this. Mainly the punch cards are used for this. In this all the jobs are firstly prepared and stored on the card and after that card will be entered in the system, all      the instructions will be executed one by one.
But the main problem is that a user doesn’t interact with the system while he is working on the system, means the user can’t be able to enter the data for execution.
2)   Batch Processing:
The Batch processing is same as the serial processing technique. But in the batch processing similar types of jobs are firstly prepared and they are stored on the card. and that card will be submit to the system for the processing. The system then perform  all the operations on the instructions one by one. And a user can’t be able to specify any input. And operating system wills increments his program counter for executing the   next instruction. The main problem is that the jobs those are prepared for execution must be the same type and if a job requires for any type of input then this will not  be possible for the user. And many time will be wasted for preparing the batch. The batch contains the jobs and all those jobs will be executed without the user intervention. And operating system will use the LOAD and RUN operation. This will first LOAD the job from the card and after that he will execute the instructions. By using the RUN command. The speed of the processing the job will be depend on the jobs and the results those are produced by the system in difference of time which is used for giving or submit the job and the time which is used for displaying the results on the screen.

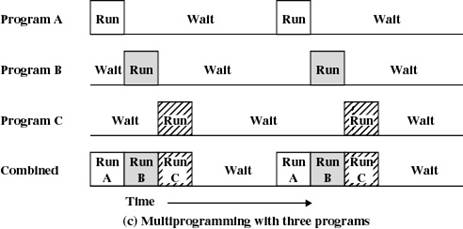

3)  Multi-Programming:
As we know that in the Batch Processing System there are multiple jobs execute    by the system. The system first prepare a batch and after that he will execute all the    jobs those are stored into the batch. But the main problem is that there will be the wastage of the time when we are preparing the batch and the CPU will remain idle at that Time.
But with the help of Multi programming we can execute multiple programs on the system at a time and in the Multi-programming the CPU will never get idle, because with the help of  Multi-Programming we can execute Many Programs on the System and when we are working with the program then we can also submit the second or another program for running and the CPU will then execute the second program after the completion of the first program. And in this we can also specify our input means a user can also interact with the system. The Multi-programming operating systems never use any cards. But the operating system also uses the process of allocation and de-allocation of the memory means he will provide the memory space to all the running and all the waiting processes. There must be the proper management of all the running jobs.

4)  Real Time System:
There is also an Operating System which is known as Real Time Processing System. In this Response Time is already fixed. Means time to Display the Results after Possessing has fixed by the Processor or CPU. Real Time System is used at those places in which higher and Timely Response required. These Types of Systems are used in Reservation. So when we specify the Request, the CPU will perform at that Time.

5)  Distributed Operating System:
Distributed Means Data is Stored and Processed on Multiple Locations. When a Data is stored on to the Multiple Computers, those are placed in Different Locations. A distributed operating system manages a group of independent computers and makes   them appear to be a single computer. The development of networked computers that could be linked and communicate with each other gave rise to distributed computing. Distributed computations are carried out on more than one machine. When computers    in a group work in cooperation, they make a distributed system.
If we want to Take Some Data From other Computer, Then we uses the Distributed Processing System. And we can also Insert and Remove the Data from out Location to another Location. In this Data is shared between many users. And we can also Access   all the Input and Output Devices are also accessed by Multiple Users.

6)  Multiprocessing:
Generally a Computer has a Single Processor means a Computer have a just one CPU for Processing the instructions. But if we are Running multiple jobs, then this will decrease the Speed of CPU. For Increasing the Speed of Processing then we uses the Multiprocessing, in the Multi Processing there are two or More CPU in a Single Operating System if one CPU will fail, then other CPU is used for providing backup to the first CPU. With the help of Multi-processing, we can Execute Many Jobs at a Time. All the Operations are divided into the Number of CPU’s. if first CPU Completed his Work before the Second CPU, then the Work of Second CPU will be divided into the First and Second.
7)  Parallel operating systems:
They are used to interface multiple networked computers to complete tasks in parallel. The architecture of the software is often a UNIX-based platform, which allows it to coordinate distributed loads between multiple computers in a network. Parallel operating systems are able to use software to manage all of the different resources of the computers running in parallel, such as memory, caches, storage space, and processing power. Parallel operating systems also allow a user to directly interface with all of the computers in the network.
A parallel operating system works by dividing sets of calculations into smaller parts and distributing them between the machines on a network.



The types of operating systems also can be classified according to their ability of executing the programs and for the users as single program and multi tasking.

A)  Single program:
-----------------------------------
A single program operating system allows only one program to run at a time. This was the operating system that was improved on to as multi-tasking operating systems as it was not practical to close one application to open another.
functions operating system         functions operating systemfunctions operating system

Single program operating system can be divided into:
A-1/   Single user-Single program:
This operating system don't allow the user to run more than one program at the  same time. If he will want to run another program, the previous program must be finished for doing with the another program. Such this operating system as MS-DOS (Microsoft Disk Operating System). This operating system is designed to manage the computer so that one user can effectively do one thing at a time.

A-2/   Multi user-Single program:
This operating system allow more than one user to run each one a program at the same time, whereas each user is provided with input output unit (I/O) consists of   keyboard and display screen that is connected with the mainframe. This system also   called with Timesharing, it gives the users fixed interval for using the processor.
For hardware functions such as input and output and memory allocation, the operating system acts as an intermediary between programs and the computer hardware, although the application code is usually executed directly by the hardware and will frequently make a system call to an OS function or be interrupted by it. Operating systems can be found on almost any device that contains a computer from cellular phones and video game consoles to supercomputers and web servers.

B)  Multi tasking:
-------------------------------
Multi tasking operating systems enables a single user to have two or more applications open at the same time. Multi tasking operating systems can be divided into three general types depending on the type of computer and the type of applications that  will be run. These are Real time operating systems, Single user-Multi tasking, Multi user operating systems.
functions operating system                          functions operating systemfunctions operating system



B-1/   Real time operating systems (RTOS):
They are mainly used to control machinery, scientific instruments, industrial systems, etc. Here the user does not have much control over the functions performed        by the RTOS. The main objective of real-time operating systems is their quick and predictable response to events. Such systems as ECG devices.

B-2/   Single user-Multi tasking:
This is the type of operating system most people use on their desktop and laptop computers today. They are the systems that allow a single user to work with it with running different applications at the  same time. Windows of Microsoft and Macintosh of Apple are examples of operating systems that will let a single user have several programs in operation at the same time. For example, it's entirely possible for a Windows user to be writing a note in a word processor while downloading a file from the Internet while printing the text of an e-mail message.

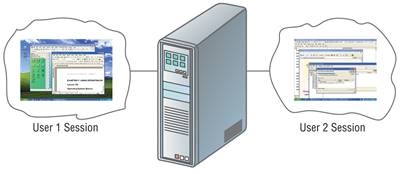

B-3/   Multi user operating systems:
They give access at the same time to the resources on a single computer to many users, there exists a control from the system to its resources. This O.S. allows many different users to take advantage of the computer's resources simultaneously. The operating system must make sure that the requirements of the various users are balanced, and that each of the programs they are using has sufficient and separate resources so    that a problem with one user doesn't affect the entire community of users. Unix, VMS, Linux and mainframe operating systems, such as MVS, are examples of multi-user operating systems.
functions operating systemfunctions operating system
