The allowance for the lockform machine is usually 25mm for a small one and 35mm for the bigger one. There is also a small edge ranging in size from 6mm to 10mm which slots into the larger end. Some machines with age may deviate from the manufacturer’s recommended allowance so trial and error may apply. Sharp edges need to be handled safely when using these machines. Gloves are needed.

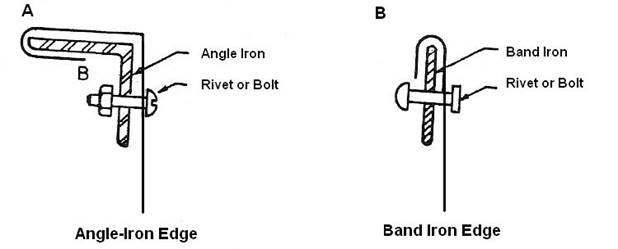

Figure 2 - Angle and Band Iron Edge
Figure 3 - Forming a Dovetail Seam

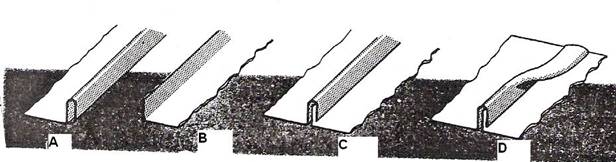

Figure 4 - Standing Seam
Some joints may fall into both categories of joint, i.e. cross-sectional and longitudinal.

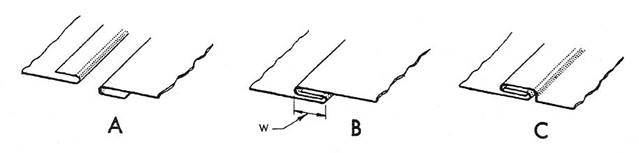

Figure 5 - Steps in Making a Hand Seam

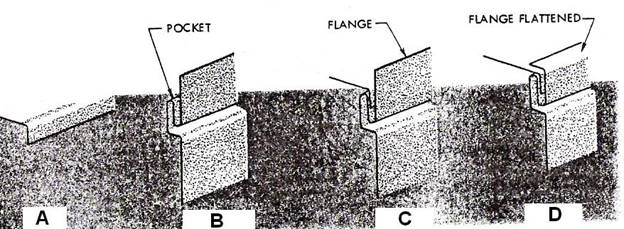

Figure 6 - Steps in Forming a Government Clip

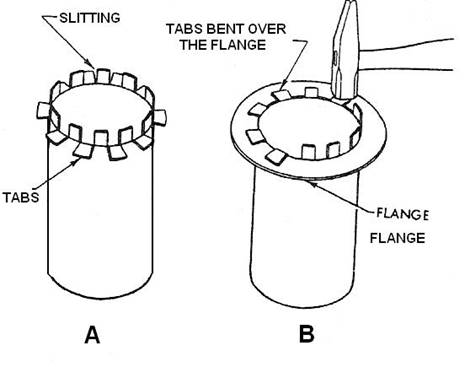

Figure 7 - Making a Double Seam

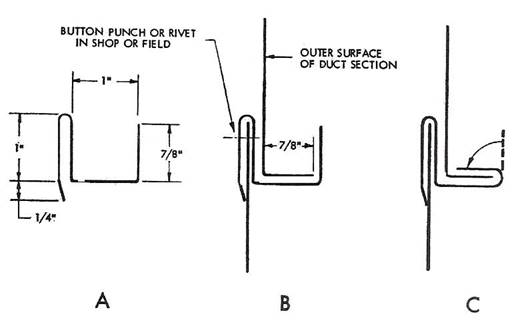

Figure 8 - Steps in Making a Bottom Double Seam
The most important thing about a joint is it does not leak. Whichever joint is used it may have to be sealed by a gasket or a sealant like mastic or even soldered. Strength and durability are also very important. It is therefore advisable to be familiar with the specifications for the job. The apprentice should have some knowledge of the manual DW/144 and have a copy at his disposal for the reasons just stated.

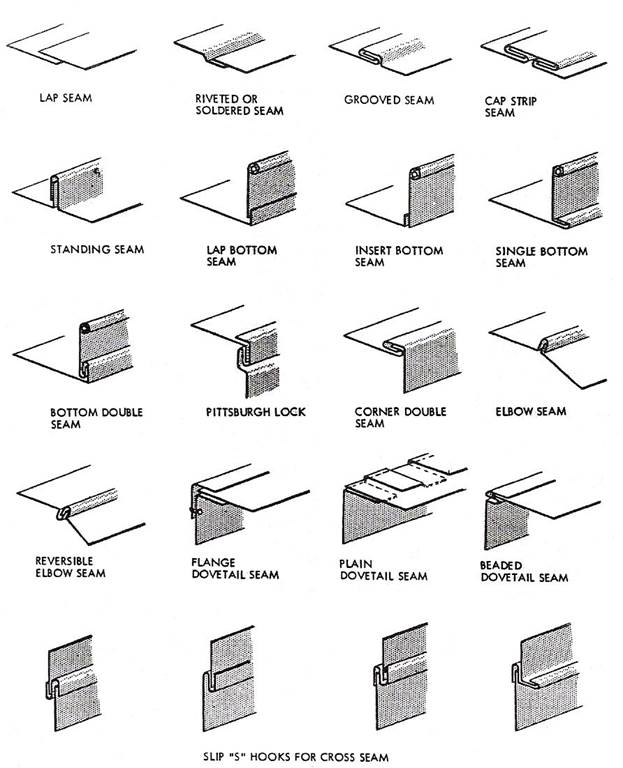

Figure 16 – Common Seams used in Sheet Metal Work

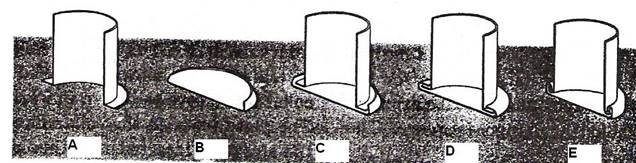

Figure 17 - Steps in Forming a Grooved Seam

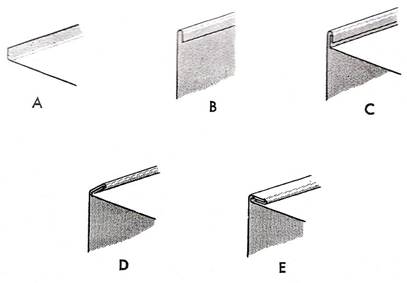

Figure 18 - Steps in Forming the Pittsburgh Seam

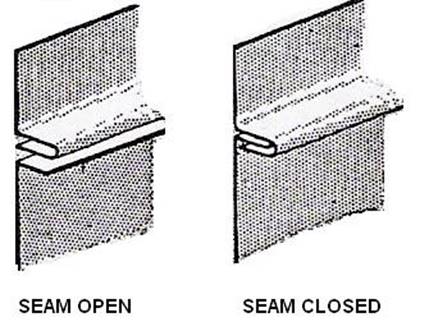

The Pittsburgh lock is also known as the lockform and the grooved joint/seam as the double edged joint seam.
These two seams are the more popular of the above seams. The following pages have more detail for the more commonly used joints in ductwork.
For ducting the most common joint is the lockform. The allowance for this varies with the machine - 35mm and 25mm are common. The lockform is a longitudinal seam as is a groove joint. The lockform or Pittsburgh lock is always positioned on a corner. Groove seams are rarely used in metal heavier than 20 gauge.

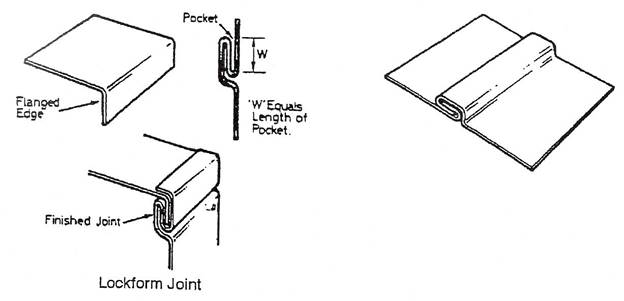

Figure 19 - Lockform Joint
Standing seams are used on large site ducting and of sheets of metal to connect and stiffen the metal. This joint eliminates the need for angle iron reinforcement.
The seam comes in various sizes and is secured with rivets or bolts at intervals.
A dovetail seam is used to connect a round pipe to a square or rectangular duct. In construction it consists of a series of tabs cut into the end of the pipe, with every other tab bent out at a 90° angle. The usual size for these cuts is about 3/8" wide and 3/8" deep. The size of these tabs will vary with the size of the pipe.
In the erection of ductwork, cross seam connections take the following form:
The type of connector used is determined by the size of the duct, strength required, and the type of application. The more popular types used in this country are items 1, 2, and 3 above, but a lot depends on the specification for a particular contract.
The usual allowance for slip joints are 25mm, 38mm or 50mm.
Slip joints are a popular way of joining square or cylindrical ducting. On cylindrical ducting the end of the pipe is usually swaged about 1½" to 2" away from the end. It is then crimped (reduced) to sit into the end of the next section of ducting. Another way to do it is to make one end of the pipe or duct smaller in diameter than the other end. On square or rectangular ducting, the end of the duct is notched on the corners to allow it to slip into the end of the next section of ducting. It is then sealed and riveted. Slip joints are usually used on small size square or rectangular ducting.
"C" Cleat (or drive cleat as it is known). This cleat is generally used in connection with S cleats for connecting cross seams on ducts. It is generally used on the short side of the duct.
Figure 23 – “C” Cleat
"S" Cleats are used in conjunction with "C" or drive cleats on the cross seams of ductwork. You may have a plain "S" cleat, hemmed "S" cleat, or the standing "S" cleat where extra strength is required.

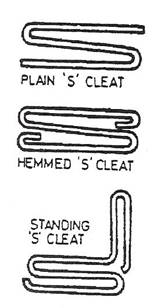

Figure 24 - "S" Cleats

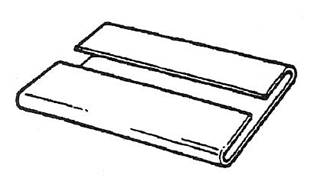

Peened joint is also known as paned joint. The paned or peened joint is used as a simple means of attaching a bottom to an article of cylindrical or conical shape, and it can also be used to secure the segments together in a lobster back bend. The allowance for this joint can very slightly from craftsman to craftsman.
W = 6mm
X = 6mm - 0.5mm = 5.5mm
Y = 6mm + 0.5mm = 6.5mm
Total: 3W or 18mm
(12mm + 6mm)
A general method would be to leave a single edge on one side of the pattern (this would be the size of the peened joint) and on the other of the pattern leave a double edge (this would be twice the size of the peened joint). On making the paned joint, the thickness of material will have to be taken into consideration to finish the joint properly.
AF = Airflow
VCD = Volume Control Damper
CFM = Cubic feet per minute
F.P.M. = Feed per minute
TA = To above
FD = Fire Damper
HVAC = Heating, Ventilation Air Conditioning
AHU = Air Handling Unit
DIA = Diameter
I.D. = Inside Diameter
Ductwork/144 the name given to the design specifications approved by the Heating & Ventilation Association. It makes reference to bend radii, rivet spacings, cross checks on ducts and what size mez flange is required. Its idea is to raise quality and have a standard which no contractor should fall below.
There are three types to be aware of:
To reduce noise in duct systems a flexible connection may be used when connecting fans to the duct. Baffles, which reduce noise, may also be fitted. The inside of the duct may also be lagged which will help insulation as well as noise reduction. Sharp bends should not be in the system. If they already are, their turning vanes should be installed to reduce noise.
The following pages refer to the DW/144 standards concerning dampers and they also give examples of component drawings and abbreviations.
Balancing dampers and control dampers are elements inserted into an air distribution system, or elements of an air distribution system. Balancing dampers permit modification of the air resistance of the system and consequently changing of the airflow rate. Control dampers control the airflow rate and in addition provide low leakage closure of the airflow.
The designer shall specify damper locations and select the damper type, as defined in “Types of Airflow Control Damper” below, appropriate to the airflow, pressure and acoustic characteristics.
To achieve the required distribution of air in the ductwork system at inlets and/or outlets. For this purpose, the damper blades are set and locked manually in any required position between fully open and fully closed.
To secure dynamic control of the air flow in the ductwork system. In this function, the damper will always be power - actuated and may require to be modulated between fully open and fully closed, and to be capable of taking up any position between these extremes. In the fully open position, the damper should have a minimum pressure drop. In the fully closed position, it will not necessarily achieve a complete shut off.
Air flow dampers of various types are available for specific purposes as follows.
Single-blade dampers shall consist of a single pivoted blade contained within a casing or section of ductwork. The blade shall be adjustable through a nominal 90° angle by means of a quadrant or similar operating mechanism. Where automatic control of the damper is required the spindle shall be extended to enable a powered actuator to be mounted.
Single-blade dampers (single-skin section) shall have a maximum duct width of 300 mm and a maximum duct height of 300 mm for rectangular ducts; and for circular ducts a maximum diameter of 315 mm.
Single-blade dampers (double-skin section) are suitable for use in rectangular ducts, and shall have a maximum duct width of 1250 mm and a maximum height of 300 mm.
Multi-blade dampers shall consist of a number of pivoted blades contained within a casing. The blades shall be adjustable through a nominal 90° angle simultaneously by interconnected linkage or gears, connected to a quadrant or similar operating mechanism. Where automatic control of the damper is required a spindle shall be extended to enable a powered actuator to be mounted.
There is no restriction on the size of duct in which multi-blade dampers or damper assemblies may be used. Where dampers are required for blade lengths in excess of 1250 mm, the blades should be suitably reinforced or supported. No individual damper blade should exceed 200 mm in width.
Iris dampers shall consist of a number of radially inter-connected blades which open or close within a casing with duct connection spigots. The blades shall be simultaneously adjusted by a quadrant or similar operating mechanism.
Iris dampers should be installed as specified by the manufacturer's operating and installation instructions, where the product is unidirectional with regard to airflow.
Iris dampers are available for circular ducts only, in diameters up to 800 mm (It should be noted that the damper casing is approximately twice the diameter of the duct).
Air pressure operated unidirectional rectangular (single or multi-blade) with adaptors if fitted to circular or oval ducts.
Two parallel adjacent plates each with multiple openings sliding against each other. The openings are designed to provide 50% air volume flow rates when they fully coincide. Used for simple operations up to 400 mm longest side.
A damper used as a shut off facility, normally for use in circular ductwork with an external slide housing allowing a blade to be fully inserted to fully extended for maximum air flow.
Generally available in cast/pressed formats up to 355 mm diameter and normally used in industrial exhaust applications.
Dampers shall be constructed from steel, stainless steel, aluminium or synthetic materials.
All products should be protected against corrosion as necessary and supplied in a fully finished condition a specified by the designer.
The following recommendations apply to dampers forming an integral part of ductwork with pressure classification A and B air leakage limits.
The dampers shall be constructed to prevent distortion and jamming in operation. The blades shall be sufficiently rigid to minimise movement when in the locked position.
The blades shall be securely fixed to the operating mechanism. Spindles shall be carried in either non-ferrous, synthetic or roller bearings. All balancing dampers shall have a locking device located on the outside of the case and shall give clear indication of the actual blade position. All penetrations of the duct shall be fitted with suitable seals where necessary.
Regulating dampers used in ductwork systems to pressure classification C shall meet the construction requirements specified in “Materials” and “Dampers used in Low and Medium Pressure Systems” above with operating mechanisms out of the airstream.
The use of any specific type of proprietary damper shall be confirmed by the designer. In all cases, proprietary dampers shall meet the relevant requirements of this specification.
Duct damper casings shall be constructed to meet the minimum leakage limits specified for the ductwork system to which they are installed.
In order to apply the square meterage leakage calculation as detailed in DW/143 A practical guide to Ductwork Leakage Testing, the reference casing area shall be taken as the perimeter size of the damper multiplied by the equivalent length of one metre, for example an 800 mm x 400 mm duct damper shall have a surface area for casing leakage performance calculated as follows; [(2 x 0.8) + (2 x 0.4)] x 1 = 2.4m² casing area.
Other performance and rating test methods for dampers and valves are specified in IS05129 and BS/EN1751, and are referenced below:
Dampers shall be installed in accordance with any relevant ISO, EN or British Standard, local building regulations and national codes of practice as well as the manufacturer's recommendations.
Dampers are required in air distribution systems for fire containment. Generally they are called for where ducts penetrate walls or floors which form fire compartmentation. The damper assembly should have a fire resistance rating equal to that of the fire barrier it penetrates and shall be fire tested and rated to the time/temperature curve of BS476 part 20 and 22.
Fire dampers of various types are available for specific purposes, as follows:
Folding curtain fire dampers shall be constructed of a series of interlocking blades which fold to the top of the assembly permitting the maximum free area in the airway. The blades shall be held in the open position by means of a thermal release mechanism rated at 72°C ± 4°C.
The fire damper must be able to close against static air conditions when mounted in either the vertical or horizontal planes.
In the event of a signal from a remote sensor the fire damper blades shall be released and close the airway. A local excess temperature in the area of the fire damper shall, independent of any remote sensors, automatically release the blades and close the airway by means of the thermal release mechanism, electric solenoid or electromagnet.
Single blade fire dampers shall consist of a single pivoted blade within a fire resistant case.
The blade shall be released from its open position by means of a thermal release mechanism rated at 72°C ± 4°C, electric solenoid, electromagnet(s) or other device.
The blade shall close the airway by means of anyone, or combination of, an eccentric pivot, balance weight(s) and/or spring(s), the spring element being incorporated within the damper or actuator mechanism.
The fire damper shall be able to operate in either or both the vertical and horizontal planes.
Multi-blade fire dampers shall consist of a number of linked blades contained within a fire resistant case.
The blades shall be released from their open position by means of either a thermal release mechanism rated at 72°C ± 4°C, or by the force applied from electrical solenoid(s), electromagnet(s), electrical/pneumatic actuator or other device.
The blades shall close the airway by means of a spring(s), the spring element being incorporated within the damper or actuator mechanism.
The fire damper shall be able to operate in either or both the vertical and horizontal planes.
Intumescent fire dampers shall be constructed from strips of intumescent material formed into a lattice or from honeycomb material covered with intumescent paint. The damper shall fully seal when heat or flame is applied from either side. Note these devices are generally used in door/partition low velocity applications.
The damper shall be constructed from steel or stainless steel or other approved material. Steel products shall be protected against corrosion and supplied in a fully assembled condition as specified by the designer.
Fire damper casings shall meet the equivalent leakage performance standard specified for the ductwork system to which they are installed.
Classes A, B and C are used to signify the leakage performance of the damper casing with the respective testing method illustrated and specified in BS/EN1751.
In order to apply the square meterage leakage calculation as detailed in the standard, the reference casing area shall be taken as the perimeter size of the damper multiplied by an equivalent length of one metre, for example an 800 mm x 400 mm duct damper shall have a surface area for casing leakage performance calculated as follows: [(2 x 0.8) + (2 x 0.4)] x 1 = 2.4m² casing area.
The effective formed barrier of the damper assembly shall be located within the structural opening. Where this is not possible the section of the casing outside a fire barrier must have a fire resistance not less than that of the fire barrier and be adequately supported/protected against the possibility of displacement/damage by impact.
Damper assemblies generally include built-in clearance frames to meet the requirement that the casing be free to expand in the event of fire. The integrity of the fire barrier is maintained either by metal to metal contact or by fire resistant packing. Acceptable arrangements are shown in Figure 29.
Damper installation shall be in accordance with the manufacturer's recommendations and the impending HVCA Publication DW/TM3 - Guide to Good Practice, for the design for the installation of Fire and Smoke Dampers and any conflict between the two should be resolved and authorised by the designer responsible for the fire damper selection.
Smoke dampers shall be constructed in such a manner as to restrict the spread of smoke and other products of combustion from one occupied space to another. The blade(s) shall overlap each other and/or include edge seals. The blade(s) shall be arranged to minimise the leakage of smoke. If degradable seals are fitted, care should be taken to establish the temperature range of the material used to ensure performance compatibility. The smoke damper shall be able to operate in either or both the vertical and horizontal planes and close against dynamic air conditions.
Smoke dampers of various types are available for specific purposes, as follows:
Single blade dampers shall consist of a blade of smoke tight material held in either the open or closed position by a mechanical linkage releasing to close or open and seal against the damper case. The blade shall be mechanically connected to the actuator (electric or pneumatic) and shall be triggered by interfacing with a smoke detector or fire control panel.
Multi blade dampers shall consist of blades of smoke tight material including the blade to blade seals, where fitted. The blades shall be mechanically linked to an actuator (electrical or pneumatic) to hold the blades in either the open or closed position. The actuator shall interface with a smoke detector or fire control panel and shall be so designed as to hold the blades close against the smoke seals, where fitted.
The damper shall be constructed from steel, stainless steel, other material or composite material with blades fitted to reduce the leakage of smoke and hot gases when the blades are in the closed position. Steel products shall be protected against corrosion and assembled in a fully finished condition as specified by the designer, in some circumstances controls may be supplied separately.
Smoke damper casings shall be as in “Air Leakage”.
Damper installation shall be as in “Provision for Expansion” and “Installation”.
Combination smoke and fire dampers are required in air distribution systems to prevent the spread of smoke and hot gases from the fire zone and to maintain the integrity of a fire rated structure for a period compatible with that of the separating structure. They shall be tested and rated to BS476 Part 20 and 22. Reference maybe made to BS5588 Part 4 for specific smoke rating requirements.
The closure of the fire damper under action of the thermal release element shall override all other subsequent signals.
Combination smoke and fire dampers of various types are available for specific purposes, as follows:
Single blade combination smoke and fire dampers shall consist of a single pivoted blade contained within a fire resistant case.
The blade shall be released from its open position by means of either a thermal release mechanism rated at 72°C ± 4°C, or in addition operated by the force applied from electrical solenoid(s), electro-magnet(s), electrical/pneumatic actuator or other device.
The combination smoke and fire damper shall be able to operate in either or both the vertical and horizontal planes and close against dynamic air conditions.
Multi-blade combination smoke and fire dampers shall consist of a series of blades mechanically linked and connected to a damper actuator with manual, electric or pneumatic opening and spring loaded closure contained within a fire resistant case.
The blades shall be released from their open position by means of either a thermal release mechanism rated at 72°C ± 4°C, or in addition operated by the force applied from electrical solenoid(s), electro-magnet(s), electrical/pneumatic actuator or other device.
The combination smoke and fire damper shall be able to operate in either or both the vertical and horizontal planes and close against dynamic air conditions.
The combination smoke and fire damper case shall be constructed from steel, stainless steel, other material or composite material with compressible side seals fitted between the blade ends and the casing to reduce the leakage of hot gases when the blades are in the closed position.
Steel products shall be protected against corrosion and supplied in a fully finished condition as specified by the designer.
Damper casings shall be as in “Air Leakage”.
Damper installation shall be as in “Provision for Expansion” and “Installation”.
Where an acoustic or thermal lining to ductwork is specified it should preferably be fitted at works. Before duct manufacture it should be clarified that specified external duct dimensions allow for the lining thickness. Any form of lining should have fire characteristics having minimum Class 0 rating and must be specified by the Designer for material type thickness, and application method.
Prior to the application of any lining the internal duct surface must be thoroughly cleaned to provide a dust free dry surface which may additionally be degreased.
Securing the lining to the internal duct surface can be achieved in several ways including applied adhesive, self adhesive and physical methods such as fasteners in conjunction with surface washers at a specified square pitch.
Adjacent sections of lining should abut with minimal gap and integral or separate surface finish lap to such joints and or gap filling proprietary products being applied. This procedure is to obviate any particle migration.
During application and any curing, consideration should be given to ambient temperature and humidity requirements.
In all circumstances linings should be fitted to material manufacturer's recommended methods.
Lining circular ducts is impractical and is not recommended.
Designers should be aware of the possible porous/fibrous surface nature of linings as they may present practical/hazardous problems in cleaning and maintenance. Reference in this respect should be made to the following HVCA Publications:
The provision and application of thermal insulation to ductwork is not normally the responsibility of the ductwork contractor.
Where ductwork is required to be pre-insulated, the specification should be agreed with the designer.
Where the temperature of the air within the duct is at any time low enough to promote condensation on the exterior surface of the duct and cause moisture penetration through the thermal insulation, vapour sealing may be called for, and in this case the most important requirement is to limit, penetration of the seal.
The extent of any vapour sealing of ductwork thermal insulation and the support method to be used must be clearly specified in advance by the designer.
The illustrations in this section not only highlight, where applicable, geometric limitations for the design and manufacture of ductwork components but also recommend standard drawing representation, terminology and abbreviations for both ductwork components and some of the more commonly used ancillary/plant items.
Designers and surveyors should note that bills of quantities should provide a full description.
